South Africa Corrugated Roofing Sheet Roll Forming Machine
South Africa Corrugated Roofing Sheet Roll Forming Machine
836 Corrugated Roofing Sheet Roll Forming Machine
The output of the Profile Use Metal Steel Tile Roll Forming Machine enjoys a wide range of applications in the construction of various industrial facilities, rural settlements, warehouses, supermarkets, hotels, exhibition venues, family – owned buildings, and even for the shutter doors of shopping malls. One of its key selling points is the beautiful, classical exterior and refined aesthetic it offers.
The corrugated roof sheet machine, which turns 1000mm – wide raw materials into finished products with an effective width of 836mm, has become a highly sought – after option in many countries. Its wide – ranging applications include warehouses and various buildings.

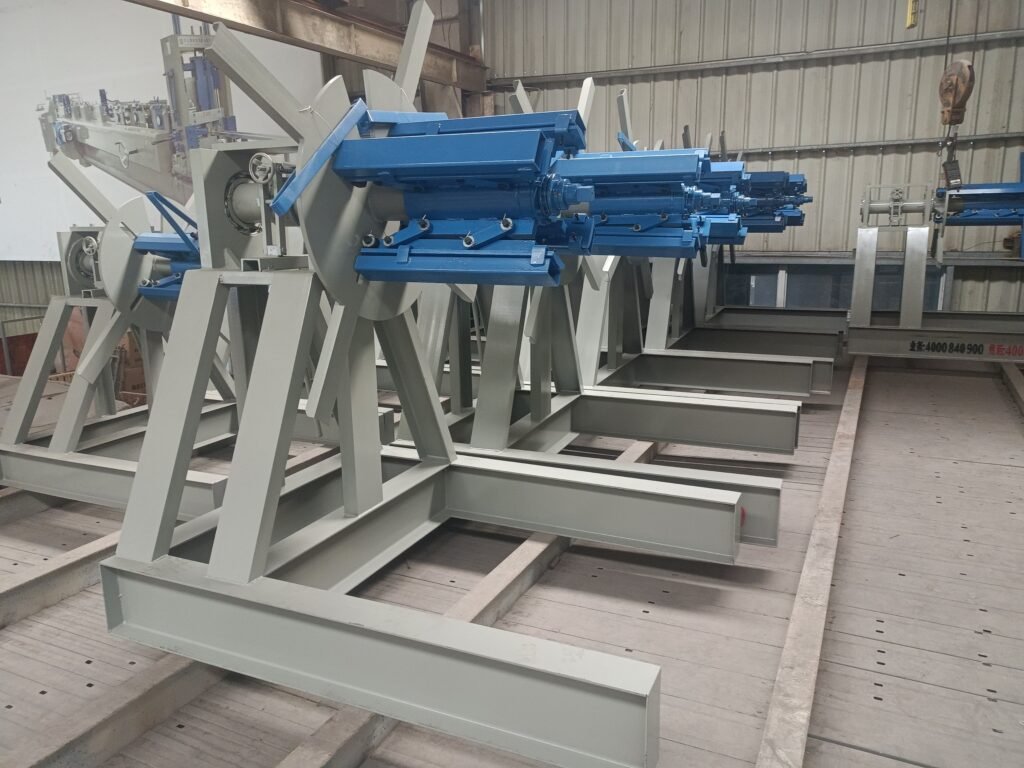

Decoiler
Features
The decoiler is composed of two essential elements, namely the mandrel and the basement. The mandrel is designed in such a way that its size can be altered, either to shrink or expand. This adjustment is carried out manually through a mechanical device. When using the decoiler, the first step is to attach the coil firmly to the mandrel. After the coil is properly fixed on the mandrel, the entire assembly, which includes the coil and the mandrel, is then placed back onto the basement for further operations.
- Rollers: Designed by senior engineers using Auto – CAD software, the rollers are manufactured from 45# high – grade steel through CNC machine tools and are coated with hard chrome.
- Shaft: The shaft, with a diameter of 70mm, is fabricated from 45# high – grade steel using CNC machine tools.
- Supporting frame: The supporting frame features steel wallboards that serve to guide the forming station and act as the bearing basement.
- Power supply: Powered by a hydraulic station.
- Frame: Welded steel frame.
- Stroke switch: Non – contact photoelectric switch.
- Cutting before forming: Cut the roll – formed sheet to the needed length.
- Length measuring: Automatic length measurement.
Advantages
The metal corrugated roof tile sheet making roll – forming machine includes one decoiler, one set of feeding platforms, one roll – forming core, and one cutting die.
We can customize the size of the metal corrugated roof tile sheet making roll – forming machine. Customers just need to show us the profile drawing, material thickness, and width, and we’ll design it as they ask.
After finishing the machine, we’ll test and adjust it many times to make sure it’s in great shape. When customers get the machine, they can use it easily.
Our Service
On – site Training: We can dispatch our engineers to your location to provide training for your staff. You are only required to cover the costs related to our engineer, including air tickets, visa fees, accommodation, meals, and local transportation in your country.
Factory – based Training: You have the option to send your employees to our factory. We will instruct them on how to operate the machine free of charge.
Online Training: There is also an economical and convenient alternative. Each machine comes with an operation manual when it leaves our factory. You can first read through the manual to familiarize yourself with the machine. Subsequently, we can conduct a video call to offer online training on machine operation.
Warranty and Technical Support: In addition to the above – mentioned training programs, we offer a 2 – year free warranty for all the easily – broken parts of the machine and provide lifelong technical service support.
FAQ
Q: Are you a trading company or a manufacturer?
A: We are a direct manufacturer with a dedicated production team and export-focused service expertise in cold roll forming machinery.
Q: Can the machine produce only one panel profile?
A: No. Our machines are engineered for multi-profile versatility, supporting wider and dual-layer production capabilities. A single unit can produce 3+ distinct panel profiles with tooling adjustments.
Q: What is the typical lead time for machine production?
A: Standard lead time is 20–45 business days. For urgent orders, we prioritize production to expedite delivery without compromising quality.
Q: How is quality control ensured during manufacturing?
A: Our rigorous QC protocol includes raw material inspection,precision machining of rolls and critical components.
Assembly verification,surface and shaft integrity testing,pre-shipment operational trials and packaging checks.
Q: What if the machine malfunctions?
A:24-month warranty,Free replacement of irreparable parts (customer covers shipping fees).
Post-warranty support: Lifetime technical assistance and negotiated repair solutions.
Q: What differentiates you from competitors?
A: Our strengths include customer-centric service with tailored engineering solutions.
Low-maintenance, user-friendly designs for quick installation and operation.
Value-added guidance to optimize your ROI and product performance.
Q: Can we partner as your international agent?
A: Absolutely! We actively seek collaborations with distributors or agents to sale our roll forming machine.
NO. | Item | Specification |
1 | Processing material | Color steel/galvanized aluminum/galvanized |
2 | Processing thickness | 0.3-0.8mm |
3. | main motor power | 5.5KW with Cycloidal reducer |
4. | Hydraulic station power | 3.0kw |
5. | Diameter of principal axis | Φ75mm |
6. | Material expand width | 850mm |
7. | Processing precision | within 1.00mm |
8. | Transmission | Sprocket&Chain(1inch) |
9. | Roller station | 10 Rollers |
10. | Cutting type | Hydraulic cutting type |
