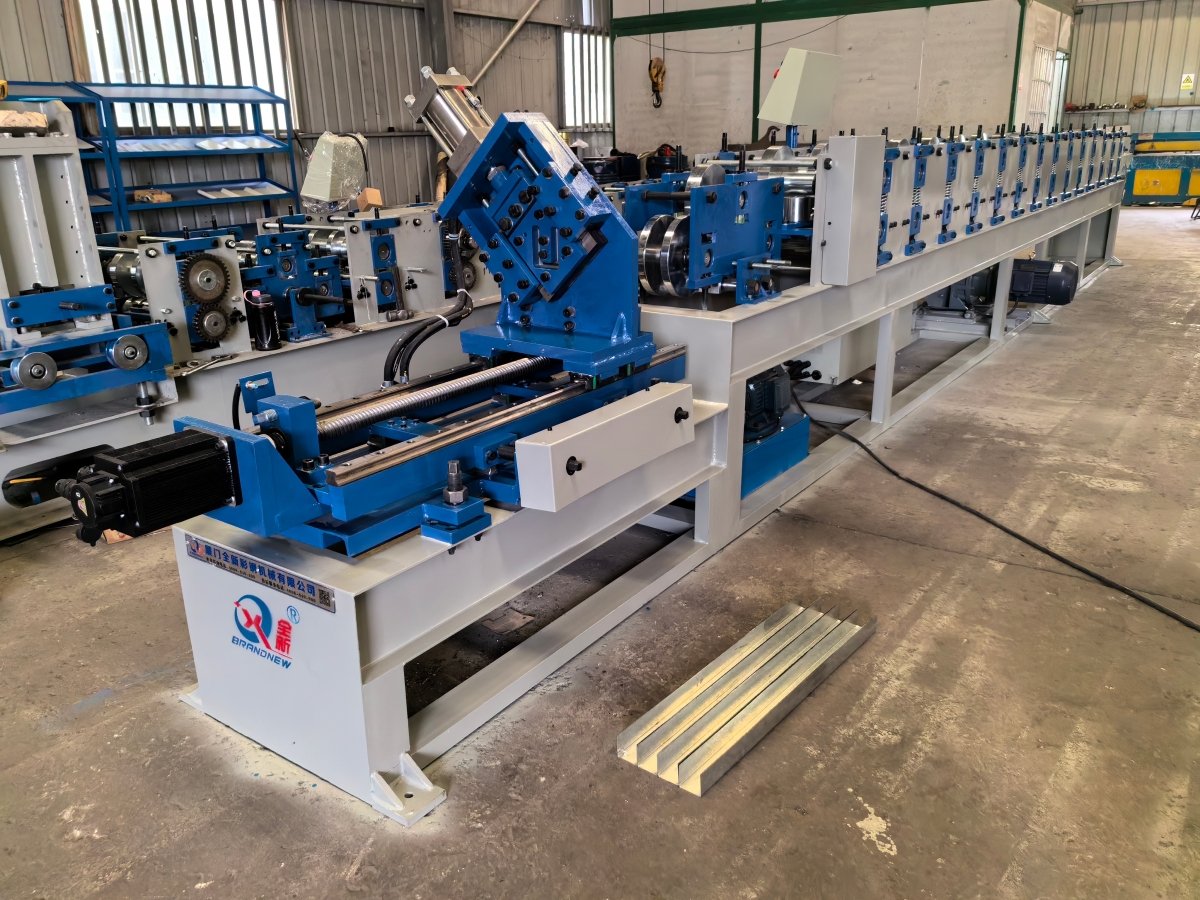

U Purlin Roll Forming Machine



High Precision | Fully Automatic | Customizable Solutions









Search more videos on our Youtube Channel:



https://www.youtube.com/@XMbeenewrollformingmachinery





1. Product Introduction



The servo-guided U-purlin roll forming machine is a fully automatic device capable of continuously and at high speed processing metal coils (such as galvanized sheets, steel strips, and color-coated sheets) into U-shaped purlins.



Its biggest feature is “non-stop cutting”—the U channel machine continuously outputs U-shaped profiles, while a “running” pair of shears precisely catches up with the profiles and completes the cut in motion. The entire process is seamless and requires no downtime.



In short, this is a fast, accurate, and worry-free tool for U-groove production.



2. What Can It Do?

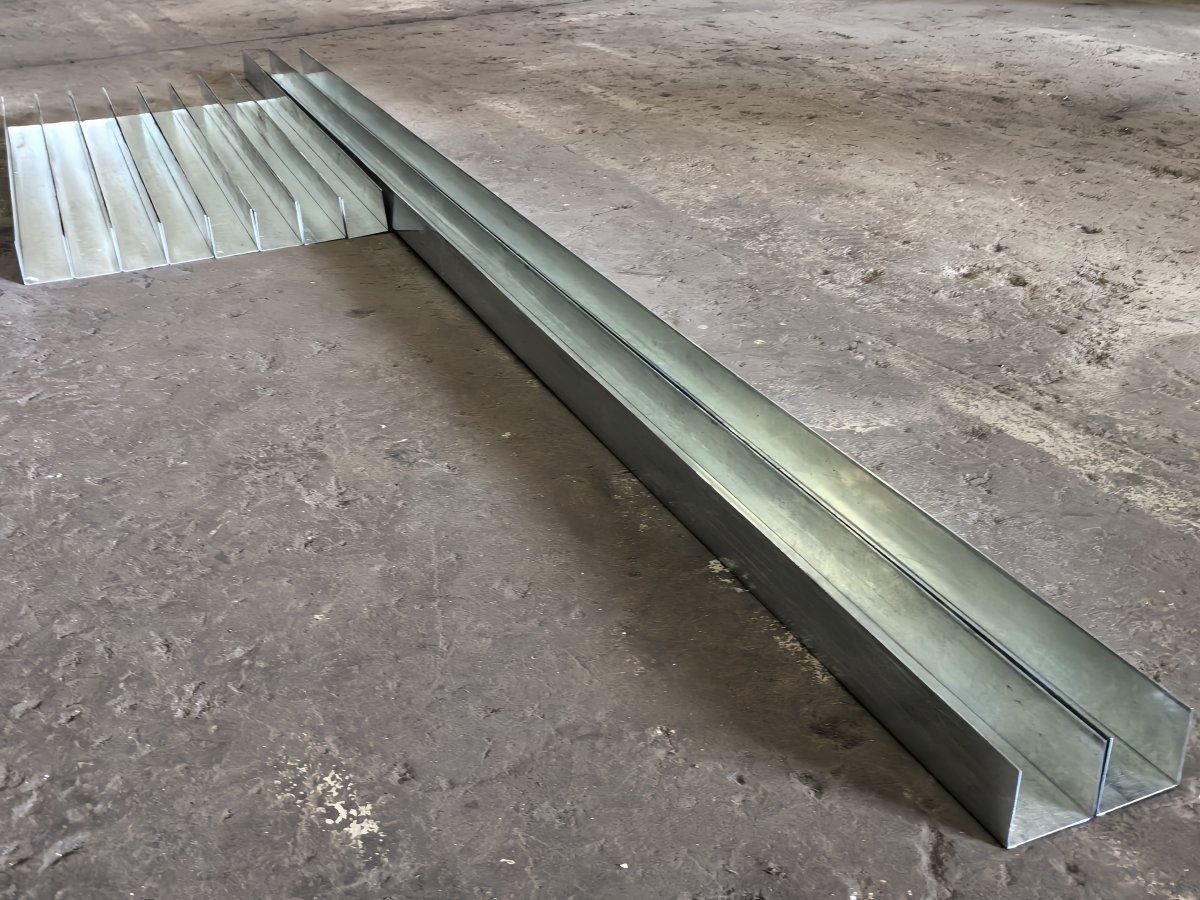

This cold roll forming machine is primarily employed for the continuous, high‑volume fabrication of U‑shaped metal strips. Representative products made with it are:





Photovoltaic brackets – structural supports for solar panels



C‑ and U‑shaped steel – purlins in industrial buildings, floor channels in prefabricated houses, and door/window frames



Automotive and transportation components – frame reinforcements and highway barrier rails



Warehouse racking systems – vertical columns and horizontal beams for automated warehouses



Cable trays – U‑profile channels for electrical cable routing

It can efficiently handle any long, high-precision, high-volume U-shaped metal parts required.



3. How does it work?



1. Uncoiling and feeding – Unwind the steel coil, straighten it, and feed it into the machine.

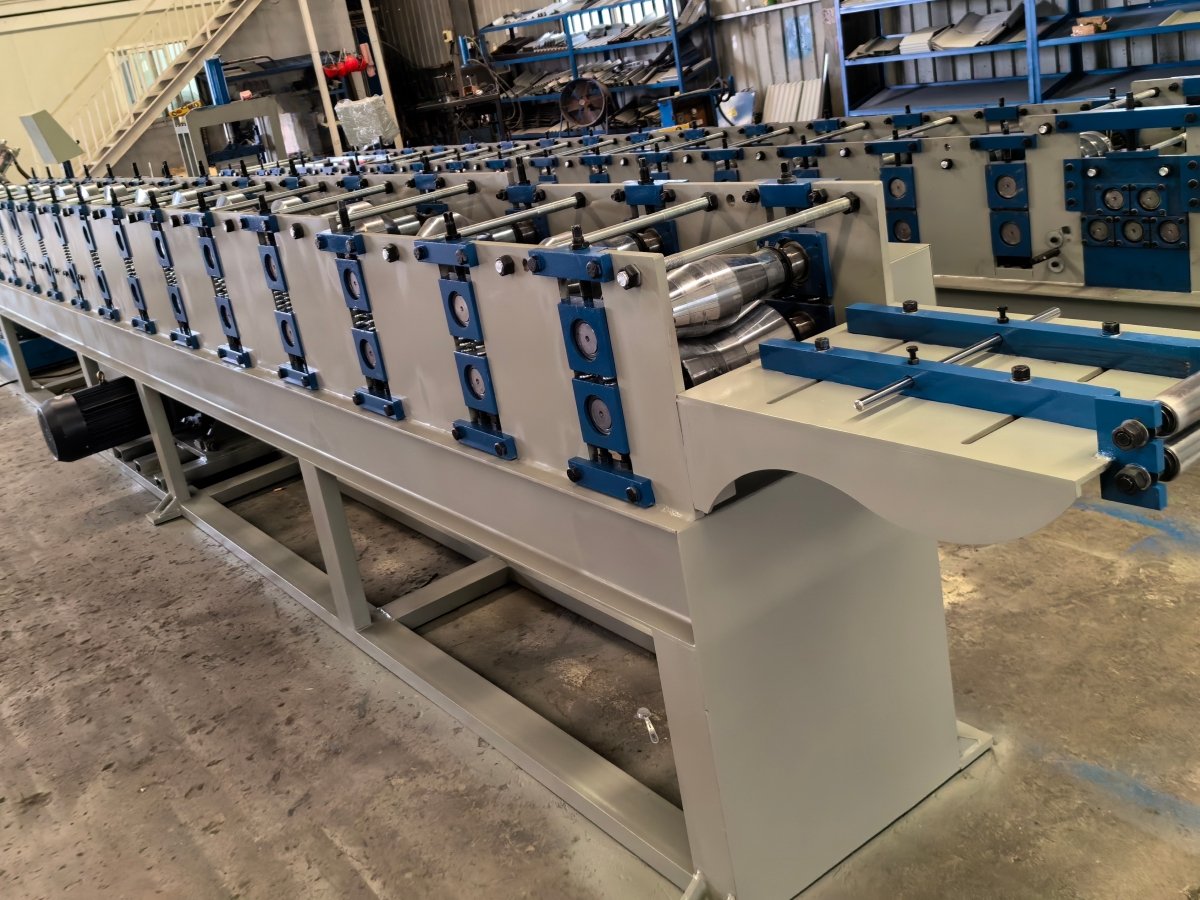

2. Continuous forming – The metal sheet goes through a dozen sets of rollers, bending step by step – just like rolling dough – until it becomes a perfect U‑shape.

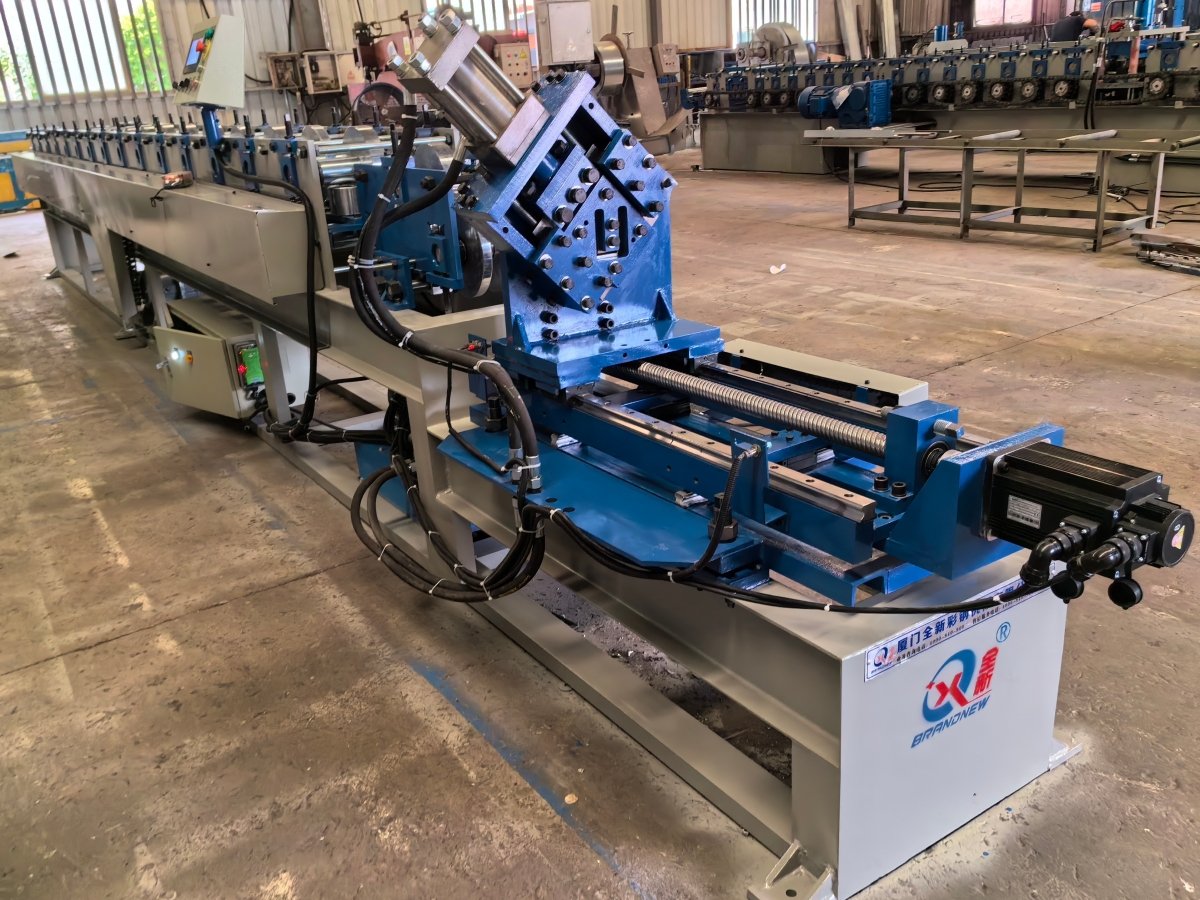

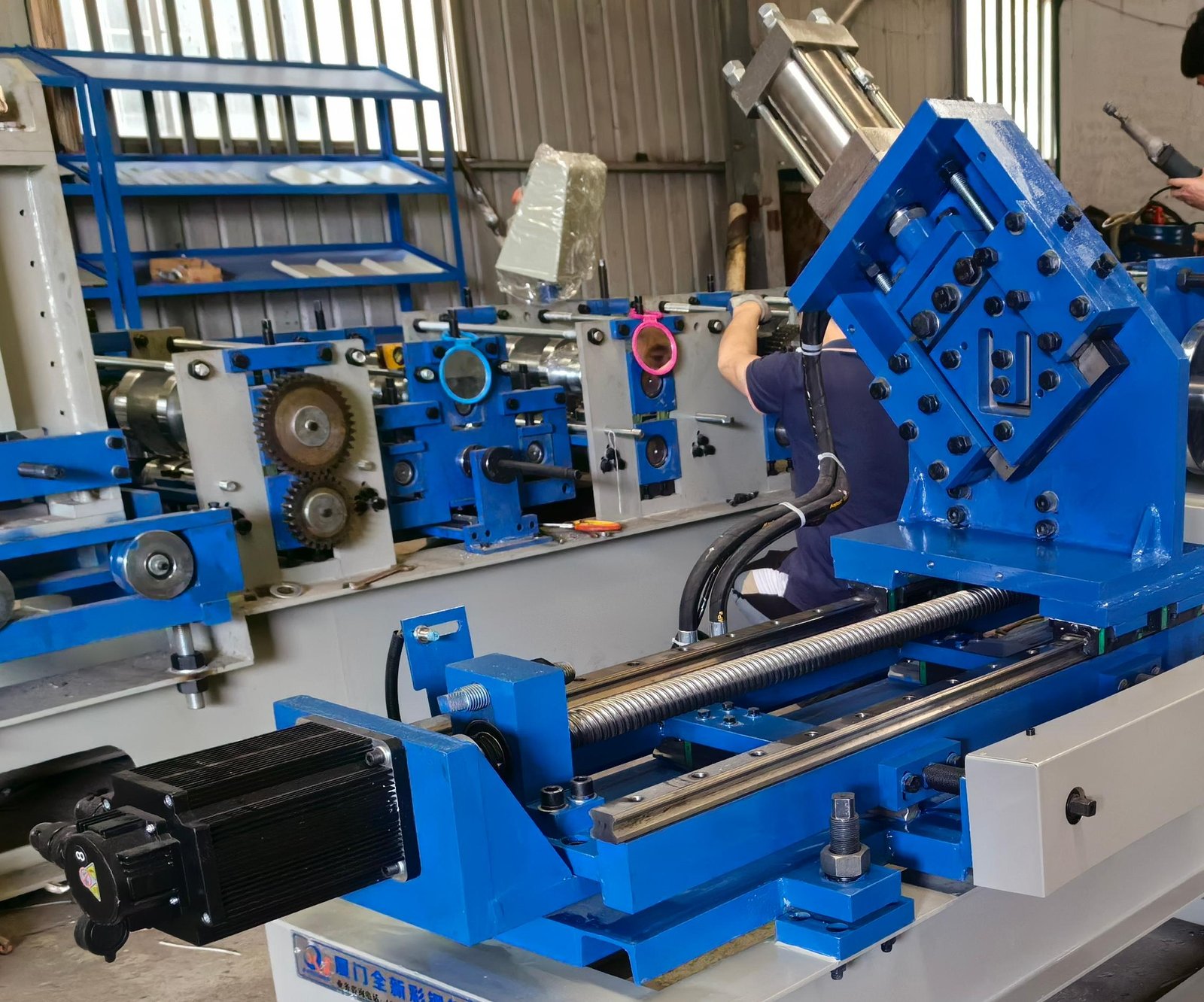

3. Flying shear (servo tracking) –

The cutting tool is installed on a servo‑driven carriage that moves linearly. While the formed profile moves at production speed, the carriage accelerates to synchronize with it. At the precise moment of speed and position synchronization, the shears actuate to cut the profile. After cutting, the carriage rapidly returns to its home position for the next cycle. The entire process requires no line stoppage. The entire production line operates without interruption, resulting in extremely high efficiency.





The entire cutting motion is precisely controlled by a computer (PLC) and servo motors, with a reaction speed faster than the blink of an eye.



4. Core Advantages – Why Choose It?



Double Efficiency: No downtime required; the production line can run continuously at high speeds, reaching 20-40 meters per minute. Traditional “stop-and-go” methods are slow and involve frequent starts and stops, resulting in far lower production efficiency.



Extremely High Precision: Because the shears and profile are completely synchronized during cutting with no relative movement, the cut is smooth and burr-free, with length errors controlled within ±1 mm. This machine is particularly well‑suited for photovoltaic brackets and other precision structural components.



Cost Savings are achieved through fewer start‑stop cycles (lower electricity use), reduced material waste, and one‑click product changeovers that minimise manual adjustment time.



Intelligent Operation comes via a colour touchscreen: the operator simply inputs length, quantity, and punching position, and the machine runs automatically. Hundreds of product recipes can be stored and recalled instantly.



Stable and Durable – the servo system uses electronic cams and acceleration/deceleration control, which reduces mechanical shock. This makes it more reliable and longer‑lasting than traditional hydraulic or clutch systems, leading to lower maintenance costs.



5. Key Technical Highlights



Follow‑up cutting method: servo‑driven moving shears enable “flying cuts”



Length accuracy: ±1 mm (far superior to conventional stop‑cut)



Production speed: 10–40 m/min (depends on material thickness)



Cutting cycle: approx. 2–3 seconds per cut



Control core: PLC + servo drive + high‑precision encoder



Operating interface: colour touchscreen with optional Chinese/English language



6. Why is “Servo Follow-up Cutting” a Trend?



Older U-channel forming machines mostly used stop-cutting: after the profile reached the set length, the machine stopped, cut, and then restarted.

This stop-and-start process is not only slow and energy-intensive, but each stop also leaves marks on the material, affecting precision and surface quality.



Servo-guided shearing completely changes this: the machine never stops, and the shears continuously follow the material. It represents the direction of cold bending forming equipment towards high speed, precision, and intelligence. It can be said that a U-channel forming machine with servo-guided shearing is a truly modern U-channel production line.
