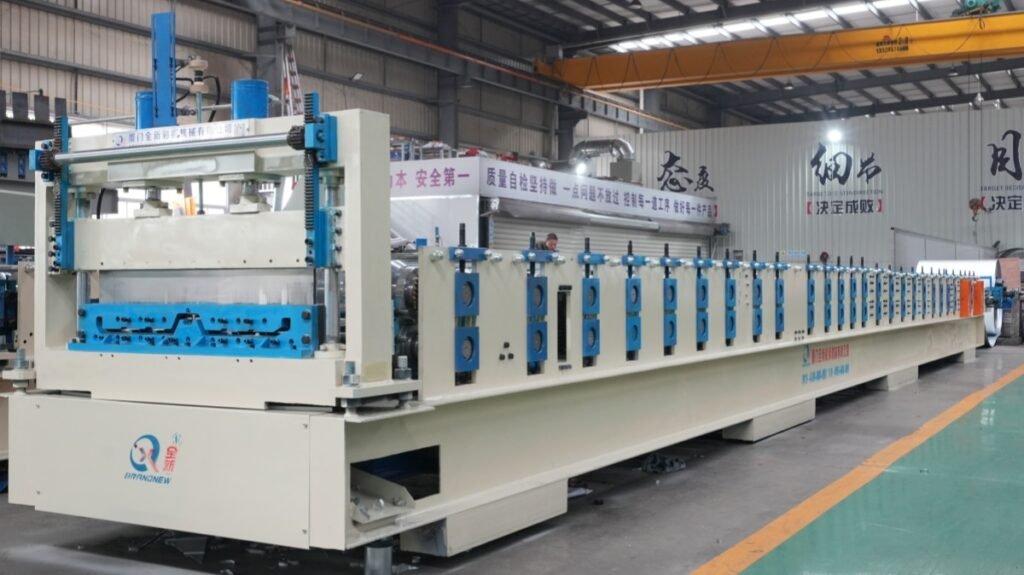

Metal Roofing Sheet Machine for BIPV System
This machine is specifically designed for photovoltaic (PV) roofing systems and can efficiently and automatically produce new types of PV metal roofing tiles.
Description
Solar-Ready Roof Panel Forming Machine | Integrated Clip-Lock Channel – No Drilling Required
Product Video
What can this roll forming machine do?

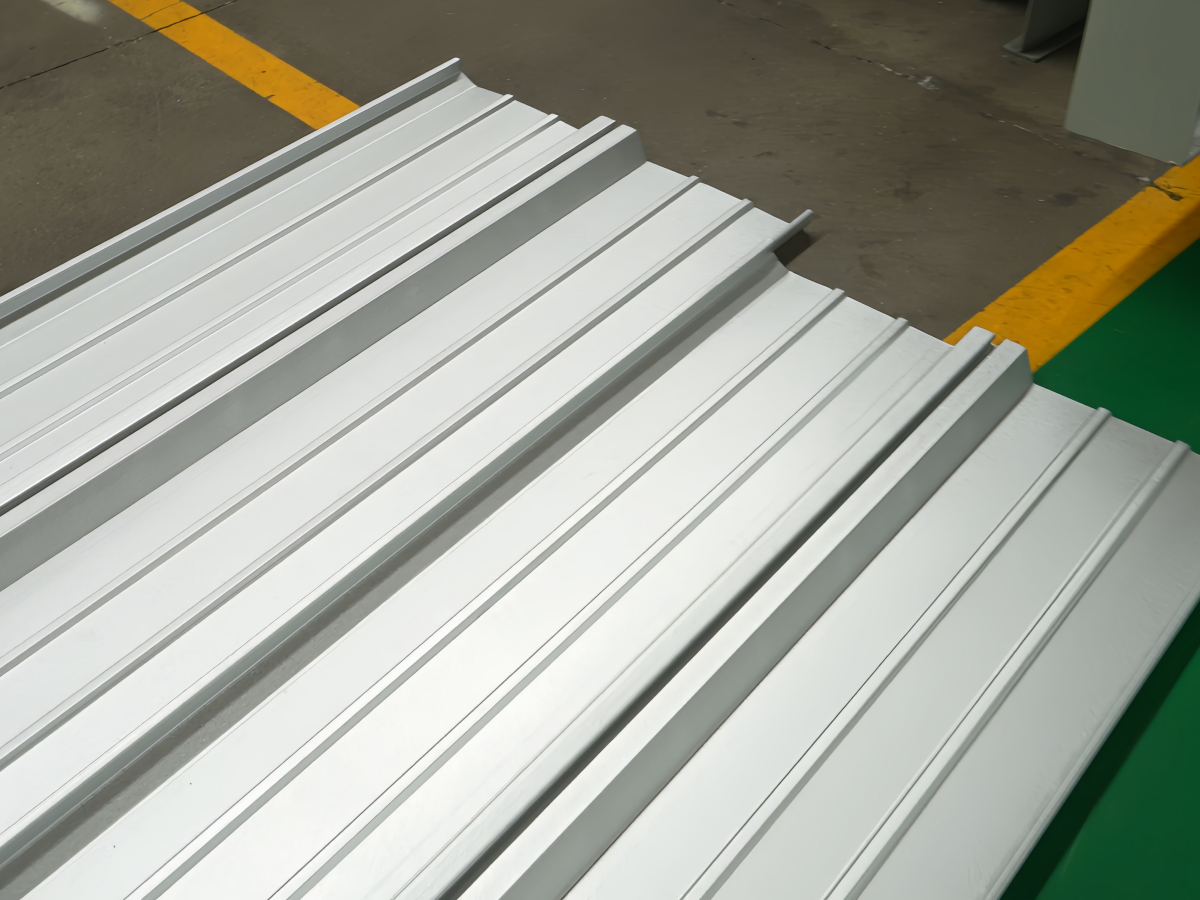

Produce metal roof panels with pre-engineered solar mounting channels. Eliminate drilling, reduce installation time, and prevent leak points — all in one forming line.
Why this type?
When solar panels are put on standard metal roofs, installers run into a familiar problem: they have to drill holes to attach the mounting brackets. Each hole is a potential spot for leaks. The installation process is also slow and requires a lot of work. Every time a hole is made, warranty risks go up. As more people use solar power, roof penetration continues to be a major worry for both contractors and those who use the systems.
Our Solution – The Smarter Way to Build Solar-Ready Roofs

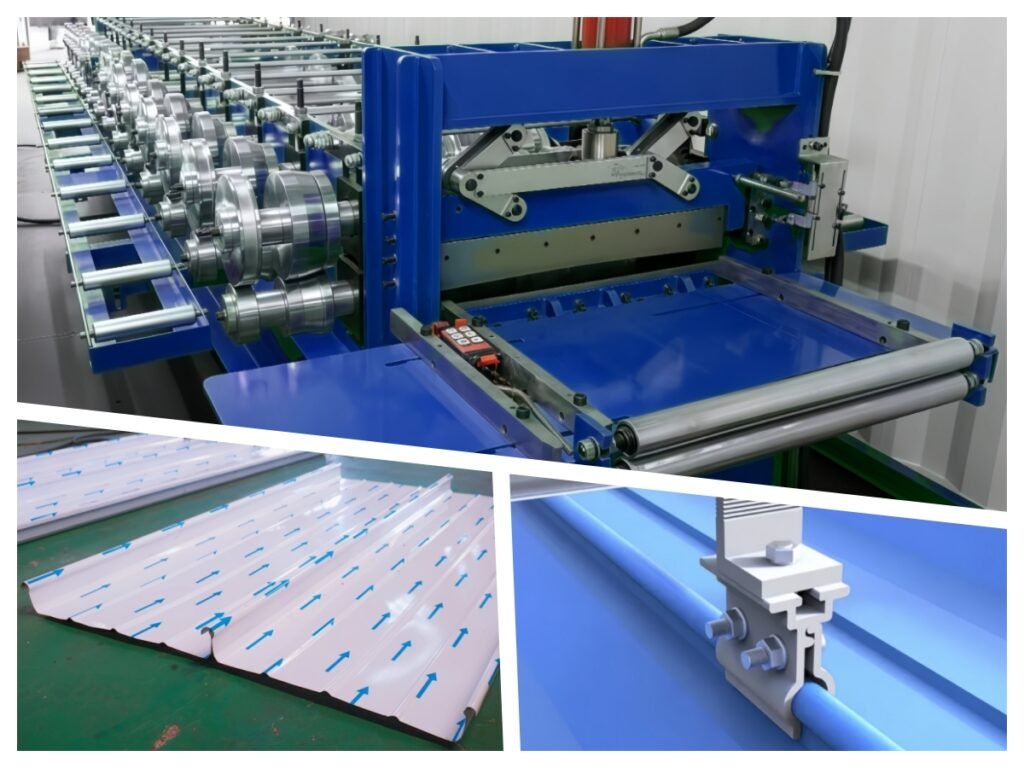

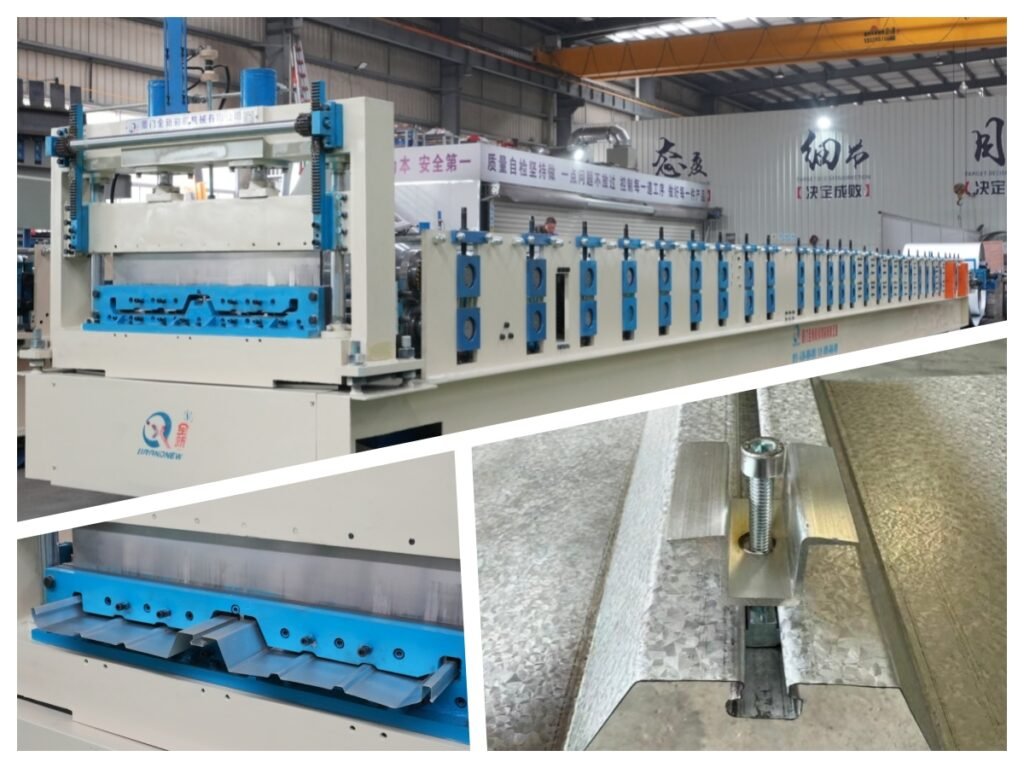

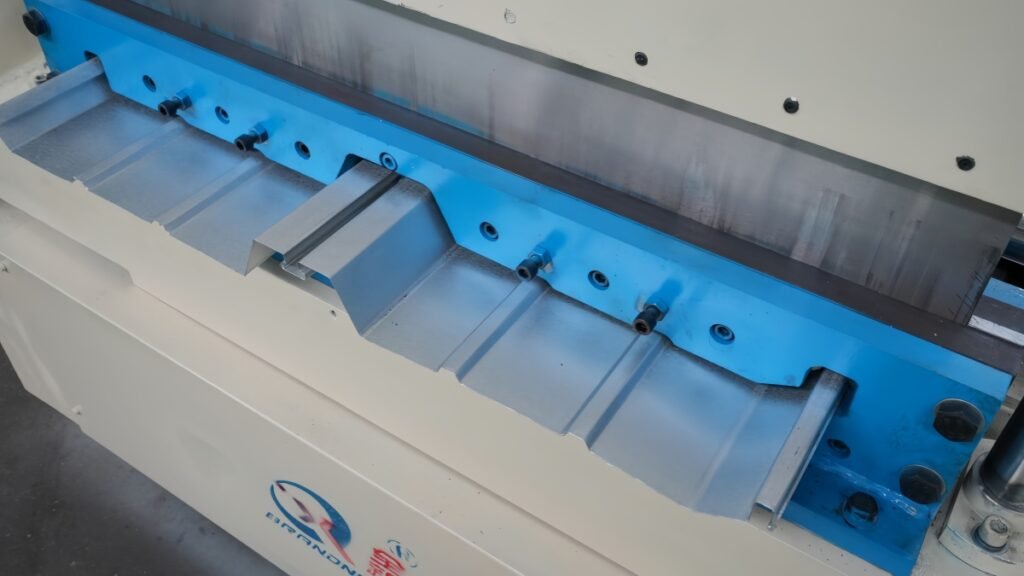

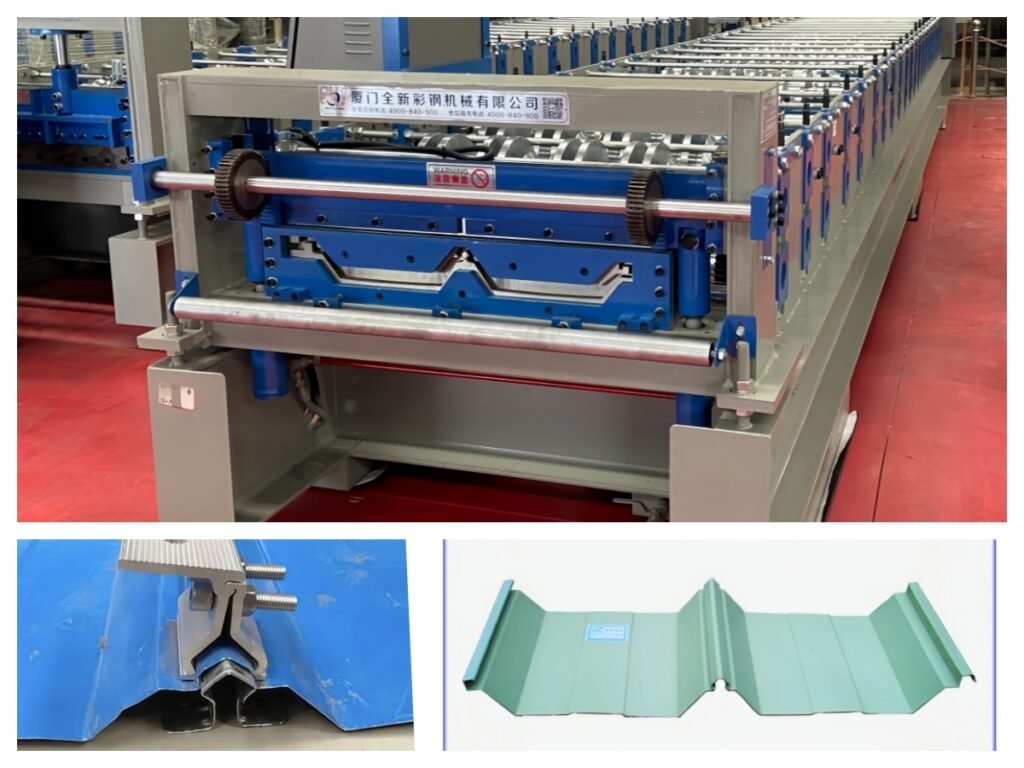

We’re introducing our Solar-Ready Roof Panel Forming Machine. This machine makes metal roof panels with a built-in clip-lock channel – a groove made just for solar mounting brackets.
Instead of drilling holes across the roof, installers simply slide solar clips into the channel and lock them in place. No screws. No sealants. No penetration.
Technical Specifications
Parameter Details
Material Thickness 0.4–0.8 mm (G300–G550)
Panel Width 300–600 mm (customizable)
Channel Type Integrated clip-lock groove for solar brackets
Main Motor Power 7.5–15 kW (customizable)
Forming Speed 10–15 m/min
Control System PLC with touchscreen (Siemens/DELTA optional)
Machine Weight Approx. 8–12 tons
Custom configurations available upon request！
Who Is This For?
–Roll forming machine buyers looking for a differentiated product
–Solar EPC contractors who want to offer leak-free roofing
–Metal roofing manufacturers aiming to capture the solar-ready market
–Developers building new solar farms or residential solar communities
Other metal roofing tiles suitable for photovoltaic (PV) roofs：
Standing Seam Roofing Sheet Roll Forming Machine
Clip-Lock Roofing Sheet Roll Forming Machine
