External Truck Body Panels Roll Forming Machine
Beenew Machinery accepts customized design and production of various vehicle body panel forming machines. Inquiries are welcome.
Description
In modern logistics, every kilogram matters. Your customers demand truck bodies that are lighter for fuel efficiency, yet tough enough to handle the rigors of daily loading and unloading.
Beenew Machinery delivers the technology to make that possible. Our External Truck Body Panels Roll Forming Machine are specifically produced for the precision manufacturing of side panels, roof sheets, and floor plates for logistics vehicles.
External Truck Body Panels Roll Forming Machine Video：
Search more videos on our Youtube Channel:
https://www.youtube.com/@XMbeenewrollformingmachinery
Types of Truck Body Panel Roll Forming Machine：

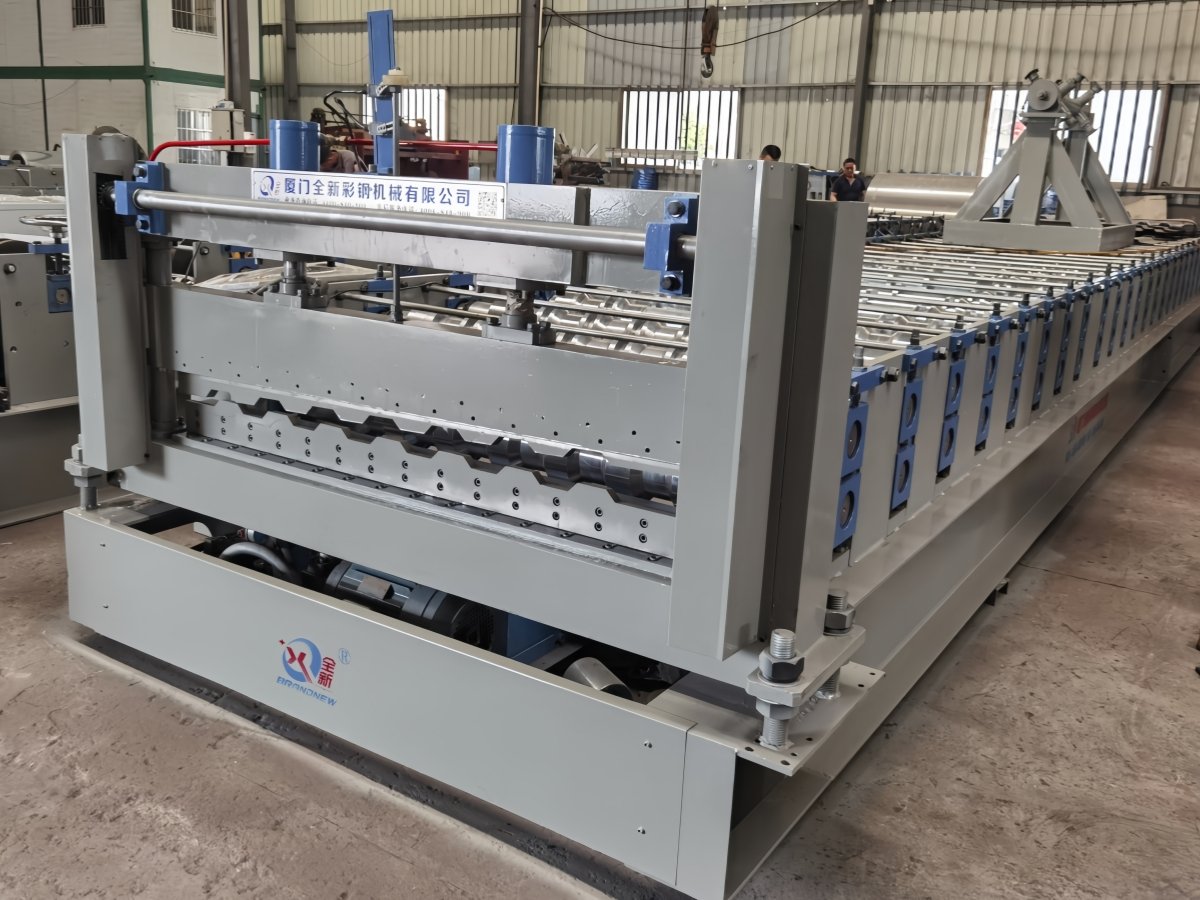

1）1305/1382 Truck Body Side Panels Roll Forming Machine

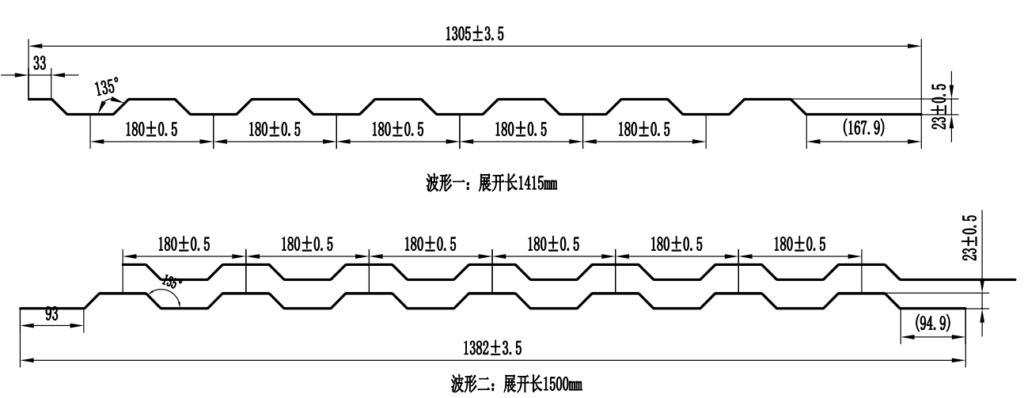

Profile：
Details：

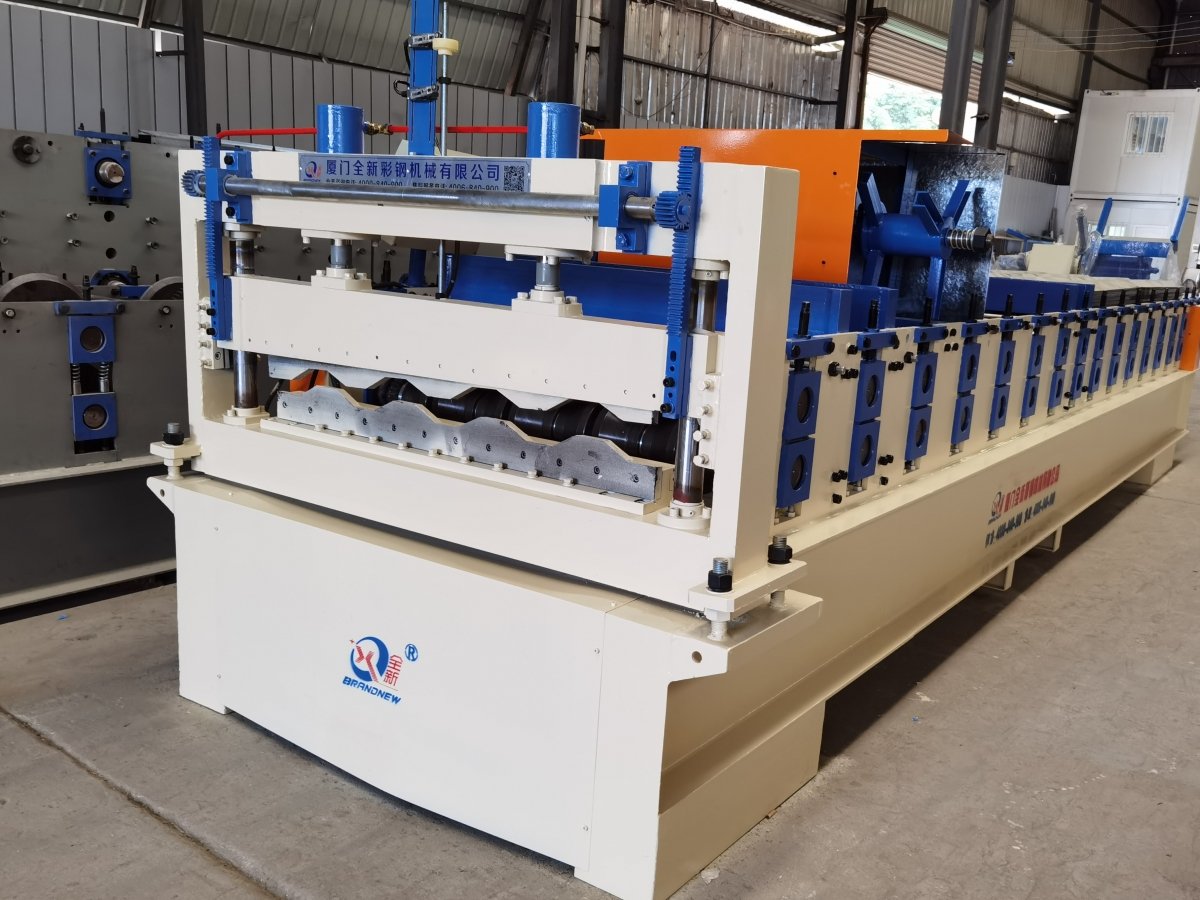

1）This External Truck Body Panels Roll Forming Machine is specifically designed for pressing aluminum sheets, and the feed width is adjustable.
2）It is driven by a servo motor and a geared motor, with gear and chain transmission.
3）All rollers and shafts are precision-machined and hard chrome plated. This ensures that every waveform of the formed carriage sheet has a consistent shape and a scratch-free surface.

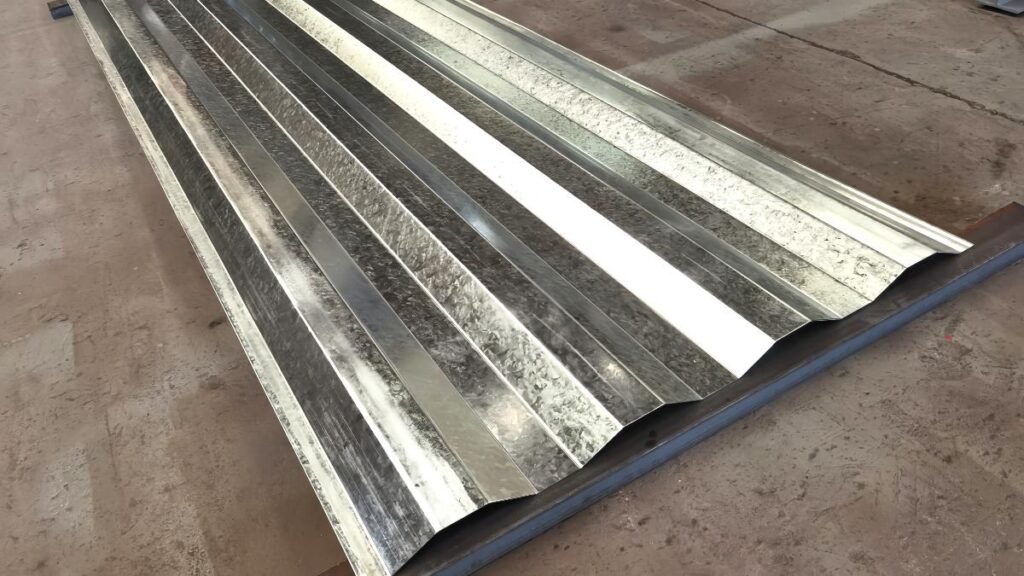

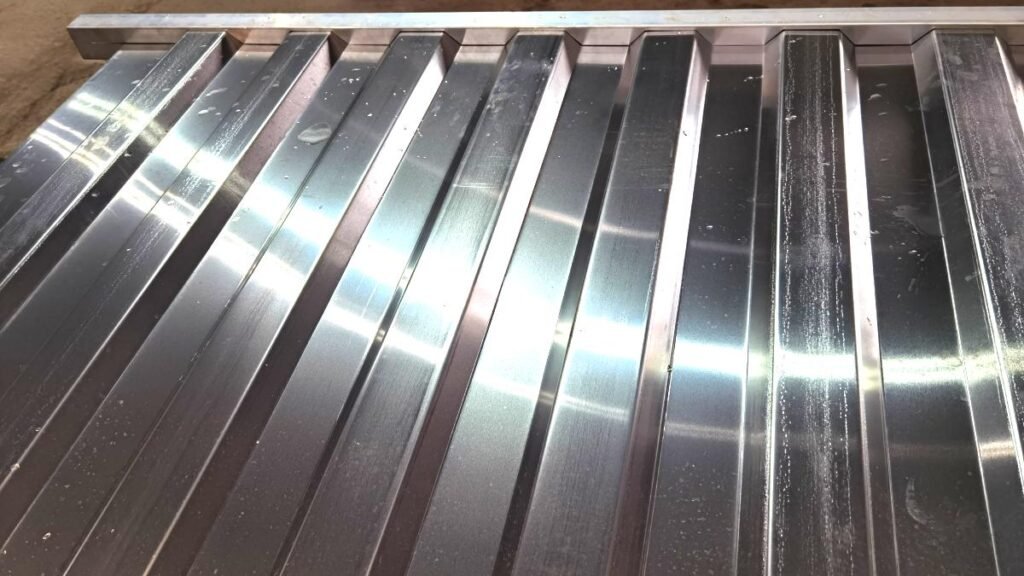

Finished product display of Truck Body Panel：

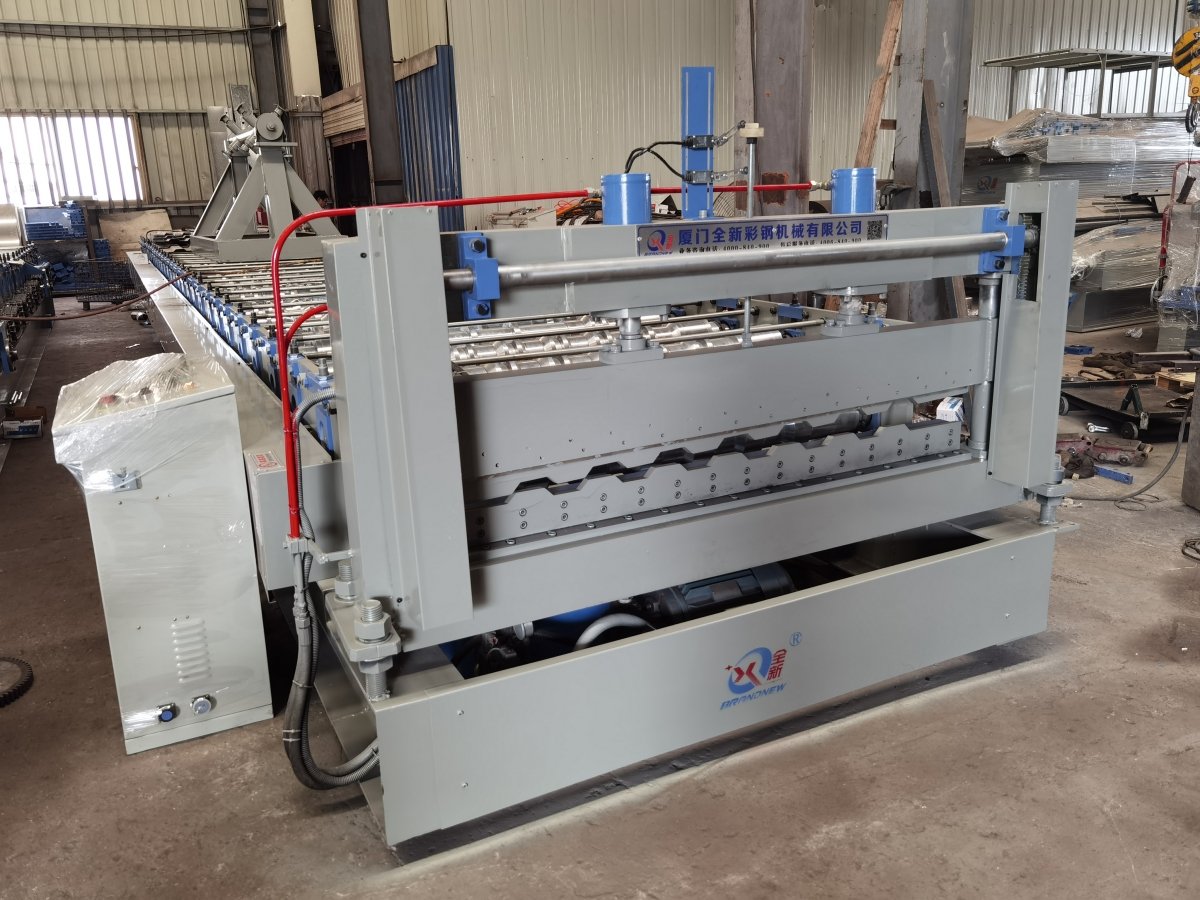

2）1193 Truck Body Side Panels Roll Forming Machine

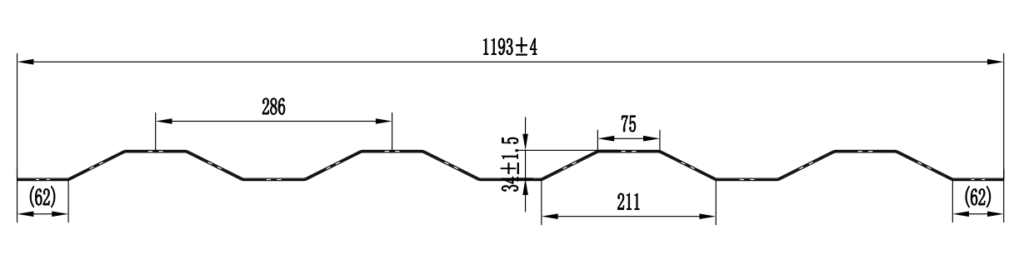

Profile：
Details：

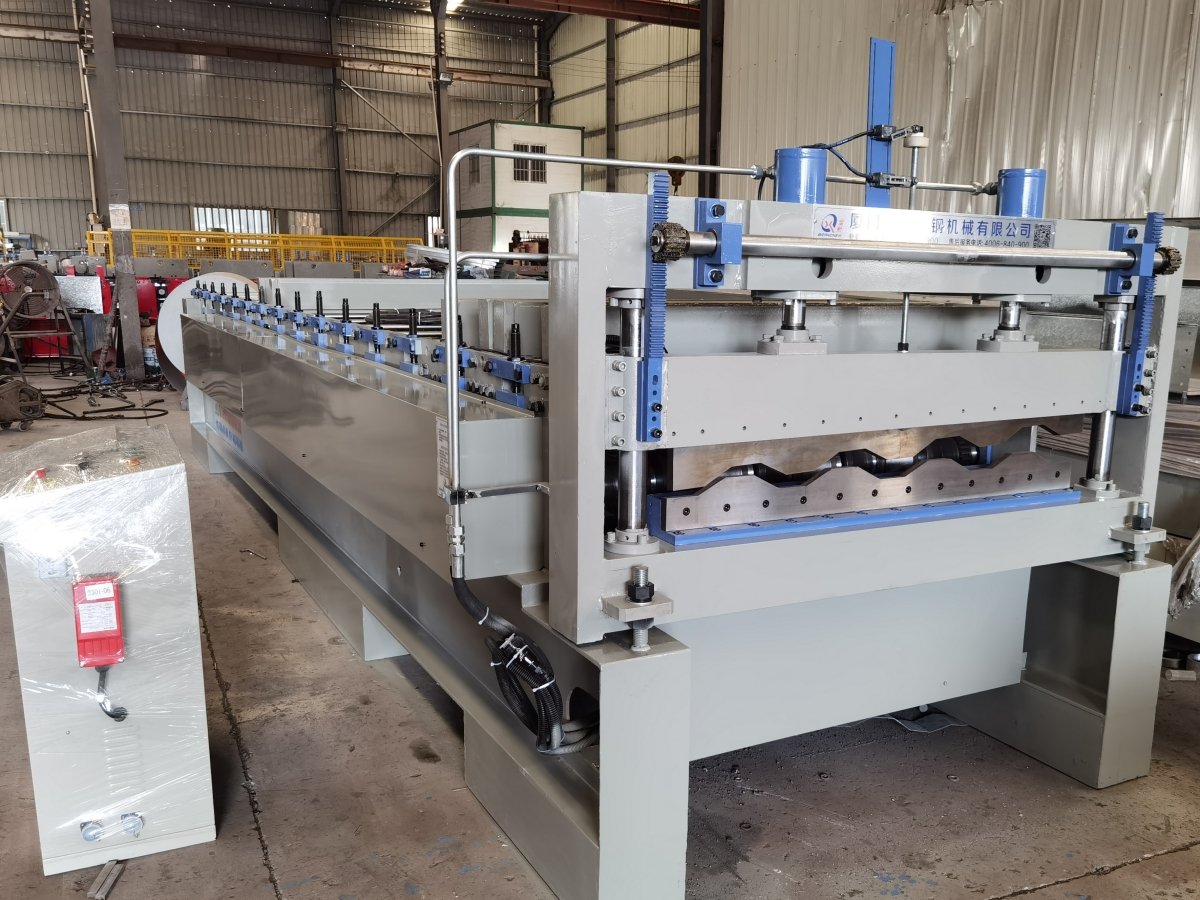

1）This carriage panel forming machine is designed to roll-press materials from 2.0 to 2.5 mm thick.

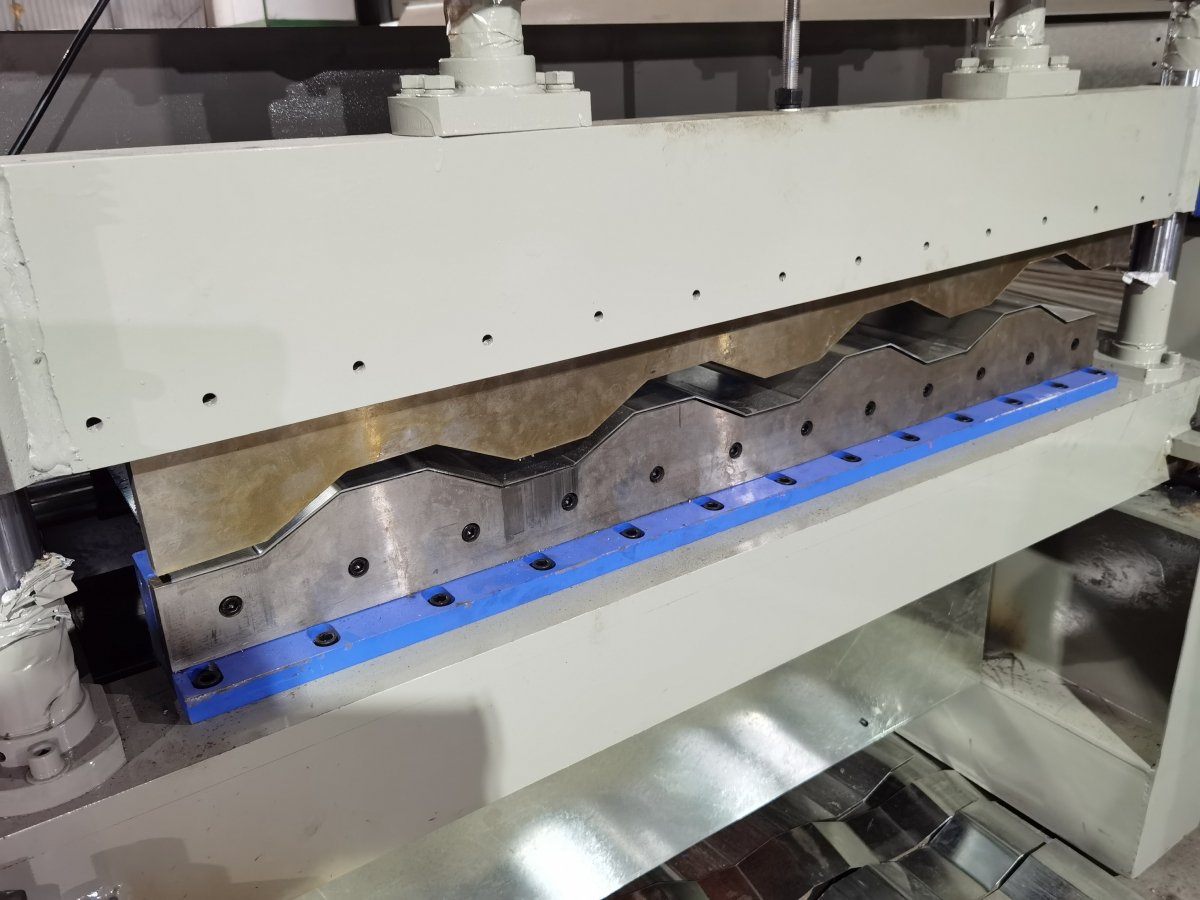

2）The forming rolls are made of Gcr15 bearing steel, heat‑treated to HRC60‑62 for excellent wear resistance and long life. Every key part is precision‑machined: rolls are CNC‑ground, shafts are hardened and finished to close tolerances, and shear blades are ground for clean, burr‑free cuts.
3）The drive uses electric motors with gear reducers and heavy‑duty chain transmission – simple and reliable.
4）All mounting surfaces are machined in one setup, so alignment is spot‑on throughout the line. As a result, finished panels come out with consistent width, straight edges, flat surfaces, and length accuracy within ±0.5 mm. The smooth rolls protect the coated surface from scratching, and the cut ends are square. That means easy assembly, a neat appearance, and dependable quality every shift.

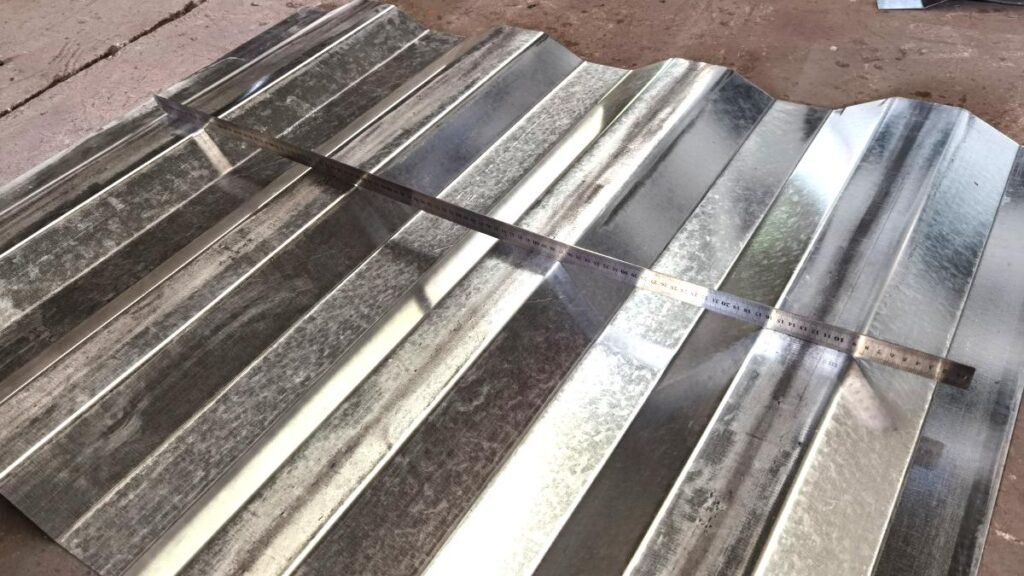

Finished product display of Truck Side Panel：

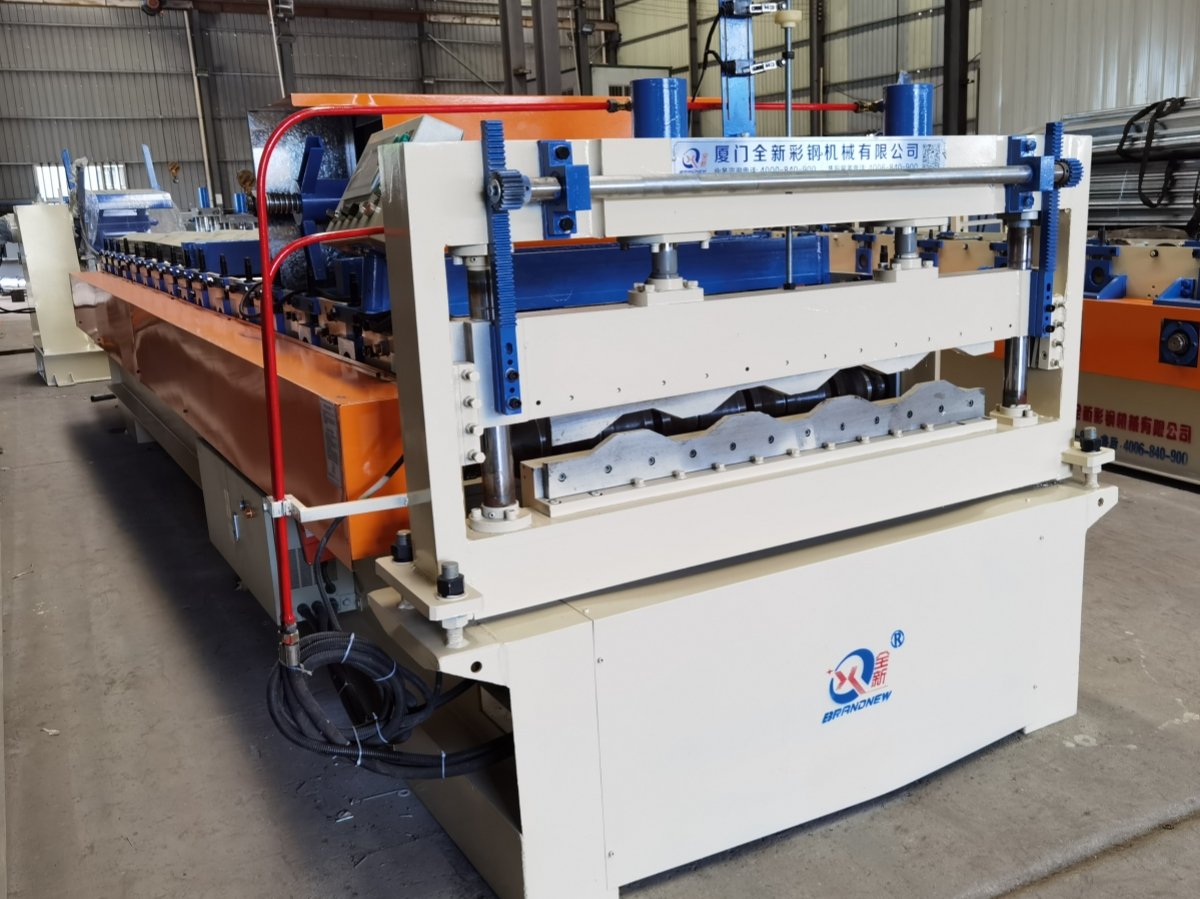

3）1114 Truck Body Side Panels Roll Forming Machine

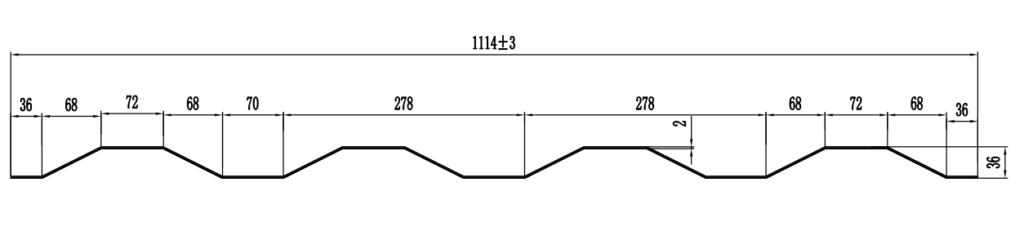

Profile：
Details：
1）This carriage/ truck side body panel forming machine is designed to roll-press materials from 1.5 to 2.0 mm thick.
2）The forming rolls are made of Gcr15 bearing steel and undergo carbonitriding heat treatment to reach a hardness of HRC60‑62, giving them excellent wear resistance and a long service life.
3）Power is delivered by electric motors paired with gear reducers and rugged chain drives – a straightforward setup that keeps maintenance easy.
4）The entire frame and all mounting faces are bored and milled in a single clamping operation, so alignment stays true from the entry guide to the cut-off station. That level of build quality pays off in the finished panels: widths are uniform, edges run straight, surfaces lie flat, and cut lengths hold to ±0.5 mm.
5）The smooth roll faces protect the pre‑coated material from mars or scratches, and the sheared ends come out square with no ragged burrs. The result is a clean-looking panel that fits right into the van assembly with minimal fitting work, shift after shift.
Finished product display for the truck side panel ：
Q&A：
Q: Is this thing a pain to set up and run?
A: Not really. The drive is just motor + gear reducer + chain – simple and easy to troubleshoot. The touchscreen control is straightforward: punch in the length and quantity, hit start, and it goes. Your guy can learn it in a day.
Q: What daily maintenance does it need?
A: Mostly oil levels in the reducers, wipe the rolls down, and check chain tension. All the lube points are easy to reach – no crawling under the machine. We kept it simple on purpose, so you’re not babysitting it all shift.
Q: Will the rolls scratch my coated material?
A: No. The rolls are ground smooth, and the surfaces are polished. We’ve run galvanised and pre-painted coils through – they come out with the finish intact. Burrs on the cut ends are minimal too, so you don’t have to deburr before assembly.
