Corrugated Roll Forming Machine
Corrugated Roll Forming Machine
Material | Type | Colored or galvanized steel sheet |
Thickness（mm） | 0.4-0.6 | |
Yield stress（Mpa） | 235-350 | |
Max. Forming speed（m/min） | 25-30m/min | |
Roller material | 45# steel with hard chrome treatment | |
Roller driven type | Chain transmission | |
Controller | PLC | |
Operation | Touch screen and button | |
Hydraulic system pressure（Mpa） | 12 | |
Hydraulic station motor power（KW） | 5.5 | |
Main motor power（KW） | 7.5 | |
Total weight（Kg） | About 85000 | |

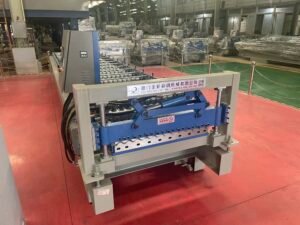

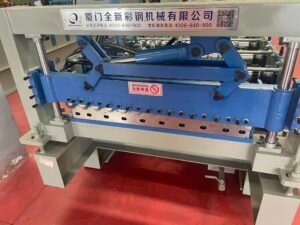

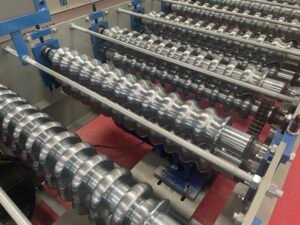

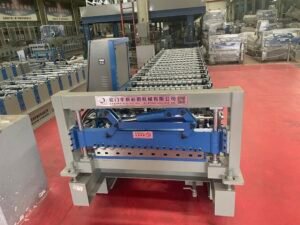

Beenew Machinery’s corrugated roll forming machines are engineered to manufacture corrugated metal sheets or panels efficiently. The machine processes metal coils through a series of adjustable rollers that progressively mold the material into precise corrugated profiles. These rollers can be reconfigured to accommodate diverse corrugation patterns and dimensions, ensuring flexibility in producing customized designs.
The resulting corrugated sheets, crafted from cold-rolled steel, utilize materials such as organic-coated steel (e.g., color-coated), galvanized steel, or corrosion-resistant steel (including asbestos-asphalt layered variants). Renowned for their lightweight yet durable properties, seismic resilience, rapid installation, and aesthetic versatility, these sheets are widely adopted in roofing systems, building enclosures, and structural applications.
