Highway Guardrail Roll Forming Machine

Introduction

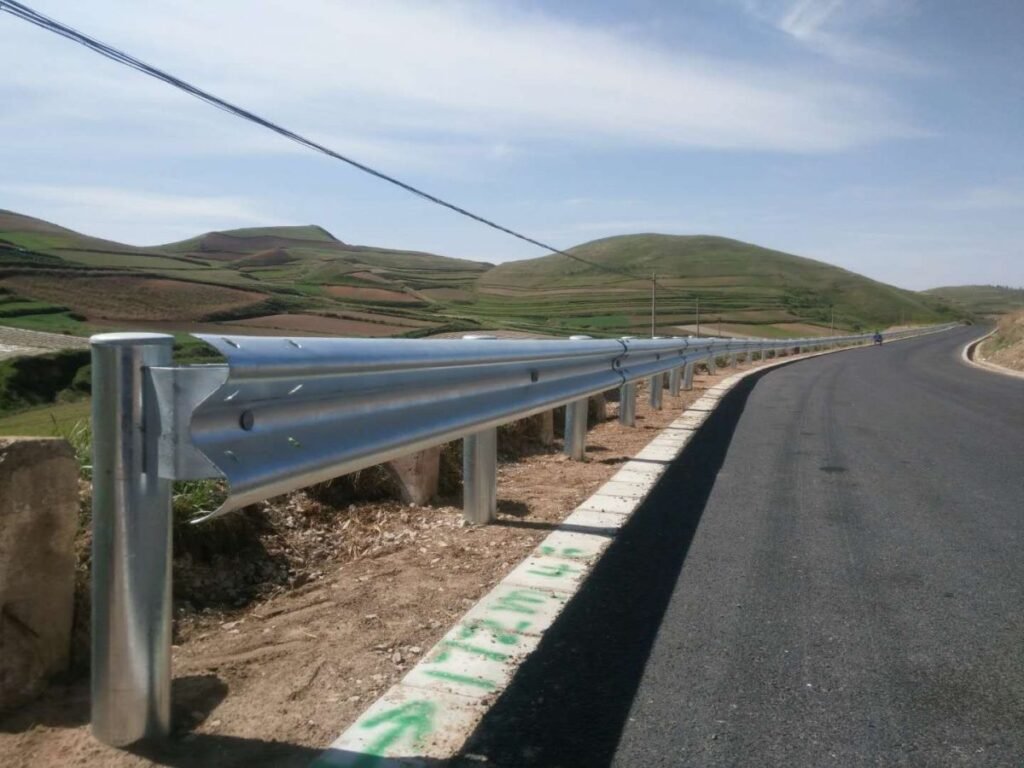

The high – speed guardrail roll forming machine is essential for producing guardrails, widely used in highway construction. There are two models: two – wave and three – wave, meeting different standards.

Beenew offers different kinds of guardrail roll forming machines with different punching and cutting solutions depending on customer’s requirements. Different solutions can reach different running speed. Using this machine can enhance highway management, reduce traffic accidents, and ensure smooth traffic flow.

Machine Components

The production line consists of a hydraulic un-coiler, leveling device, hydraulic feeding device, hydraulic punching device, , roll forming main machine , hydraulic cutting unit, output table, hydraulic oil pump, and PLC control box.

Product Features

1.Global Standards: Crash barriers worldwide are mostly fabricated using roll – forming machines with similar patterns and standards. The thickness of the guardrail can be 2mm to 4mm in different countries.

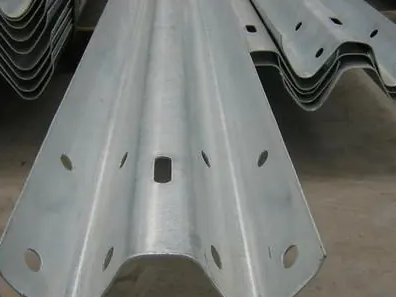

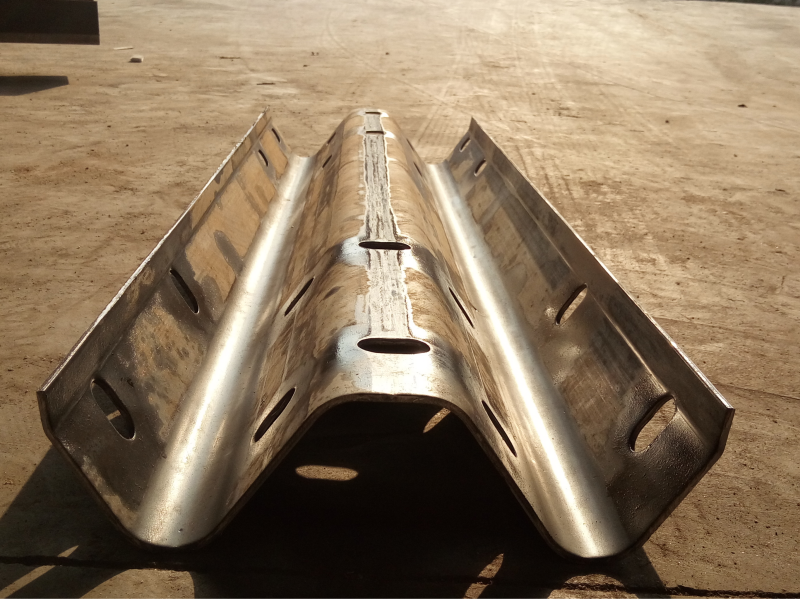

2.Effective in Accident Reduction: W – beam guardrails, produced by cold – roll forming steel coils, are highly effective in reducing the quantity and intensity of accidents on roadways.

3.Full – Automatic Production: Our “Full Automatic Highway Guardrail Roll Forming Machine” can produce 2 – wave and 3 – wave guardrails as per customer requirements.

Machine Specifications

Roller Material: The rollers are made of Gcr15 for long – term use.

Guardrail Design: Designs are based on country standards, with 2 – wave and 3 – wave options available.

Manufacturer Capabilities

Beenew is an experienced guardrail machine manufacturer in China. We offer chain – transmission rolling guard barriers for low – budget suppliers (1.0 – 2.0mm thickness) and gearbox – transmission machines for heavy – duty applications (2.0 – 5.0mm thickness). We also supply multiple – size C – beam roll – forming machines for guardrail installation.

Pricing and Options

Highway guardrail pricing depends on thickness and material. Manufacturers can sell GI C – post beams and guardrails to prevent rust. A wide range of options are available, such as carbon steel, galvanized steel, different thicknesses, shape designs, punching holes, speed, and chain or gear transmission.

Other Machines

We also offer a small bending machine for guardrails that can bend at any angle and length without wavy edges.

C – Post Beam Roll – Forming Line: For a complete crash – barrier factory, we recommend considering three lines: a 2 – wave and 3 – wave crash – barrier forming machine with punching, a crash – barrier bending machine, and a C – post beam roll – forming line with punching.
